ASSEMBLY

ASSEMBLING THE RUBBER FOOT AND

WHEELS

See Figure 3.

Mount the rubber foot as shown in figure 3.

Tighten firmly with an open-end wrench (not included)

to secure it in position.

Mount the wheels as shown in figure 3.

Tighten firmly with an open-end wrench (not included)

to secure the wheels in position.

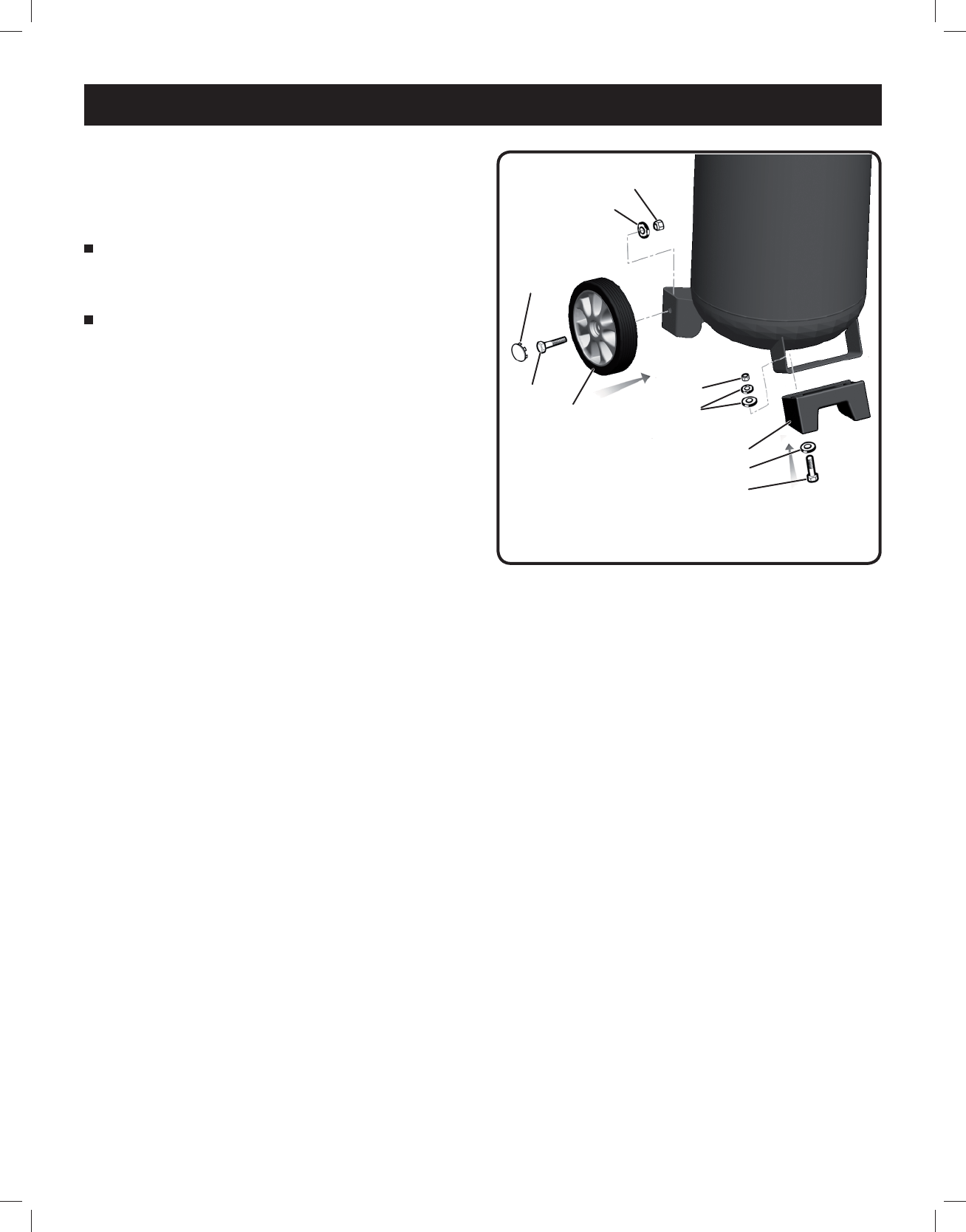

Fig. 3

WHEEL

SCREW

WASHER

WASHER

SCREW

WHEEL

PLUG

RUBBER FOOT

NUT

NUT

WASHER
